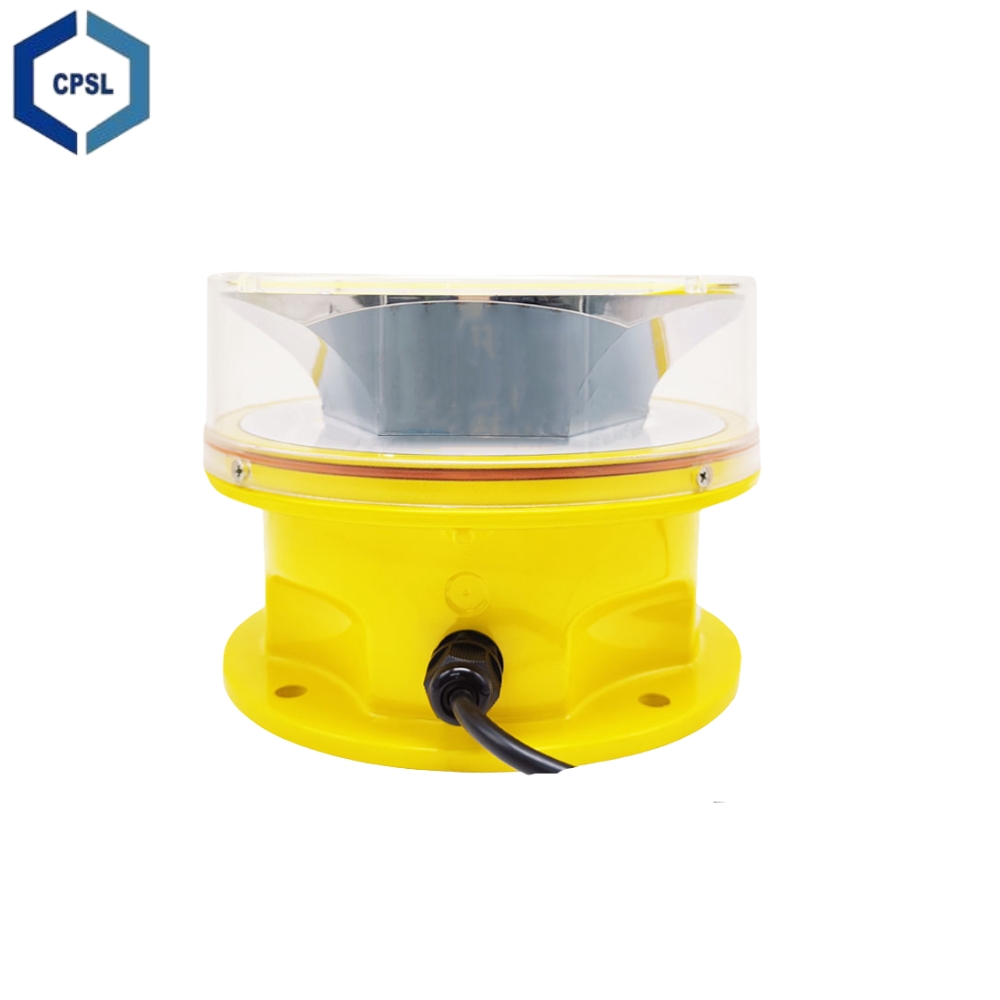

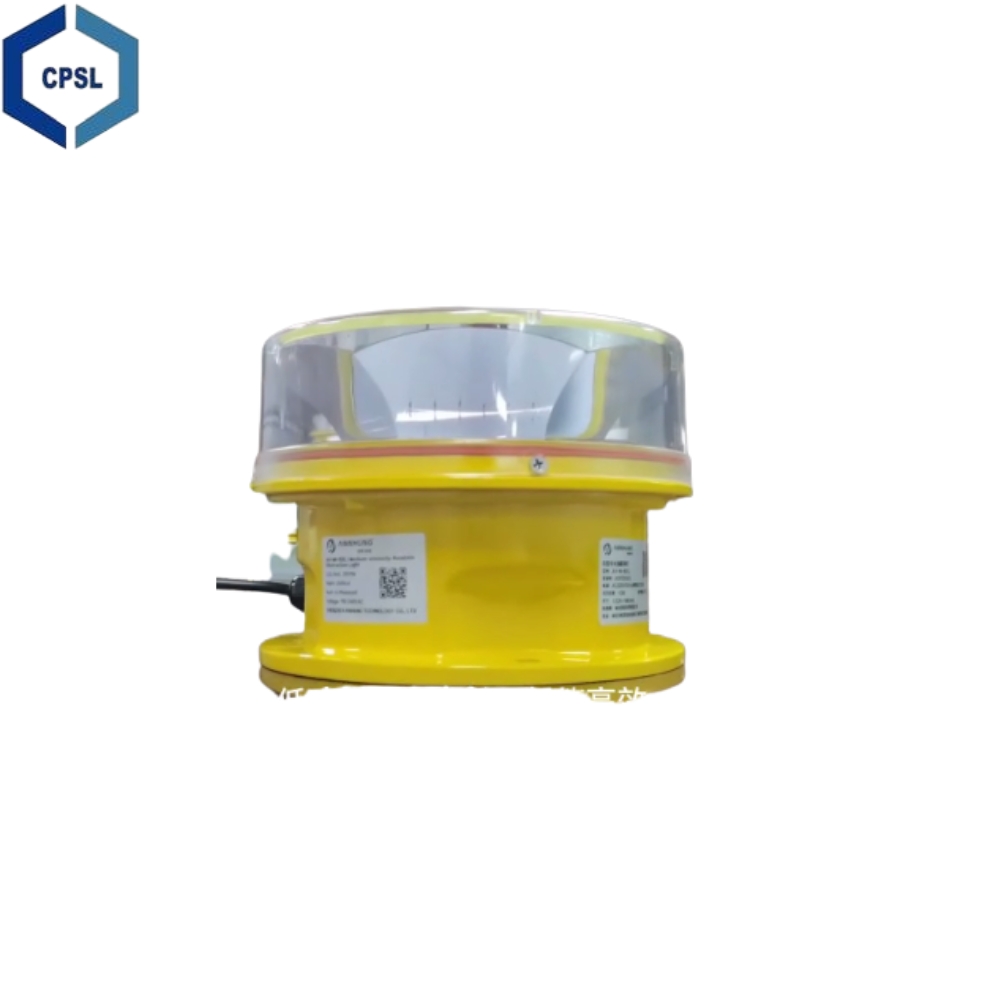

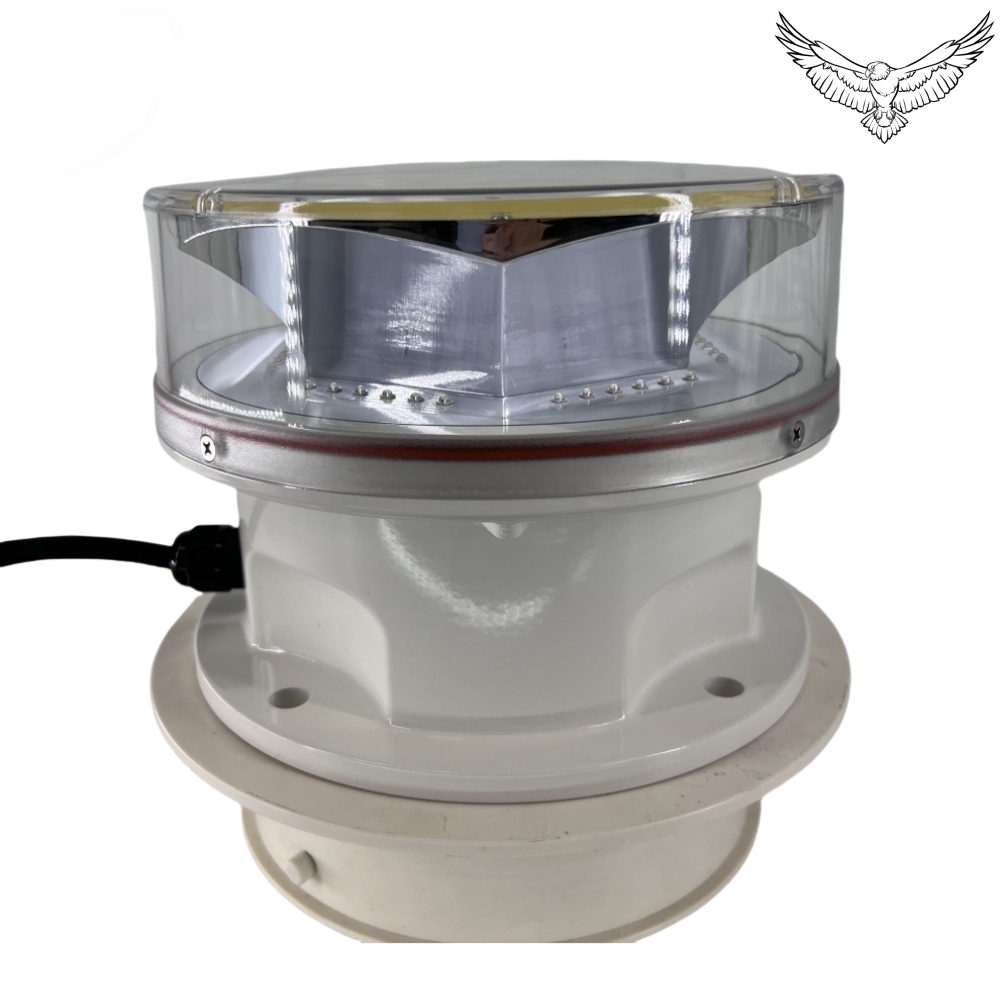

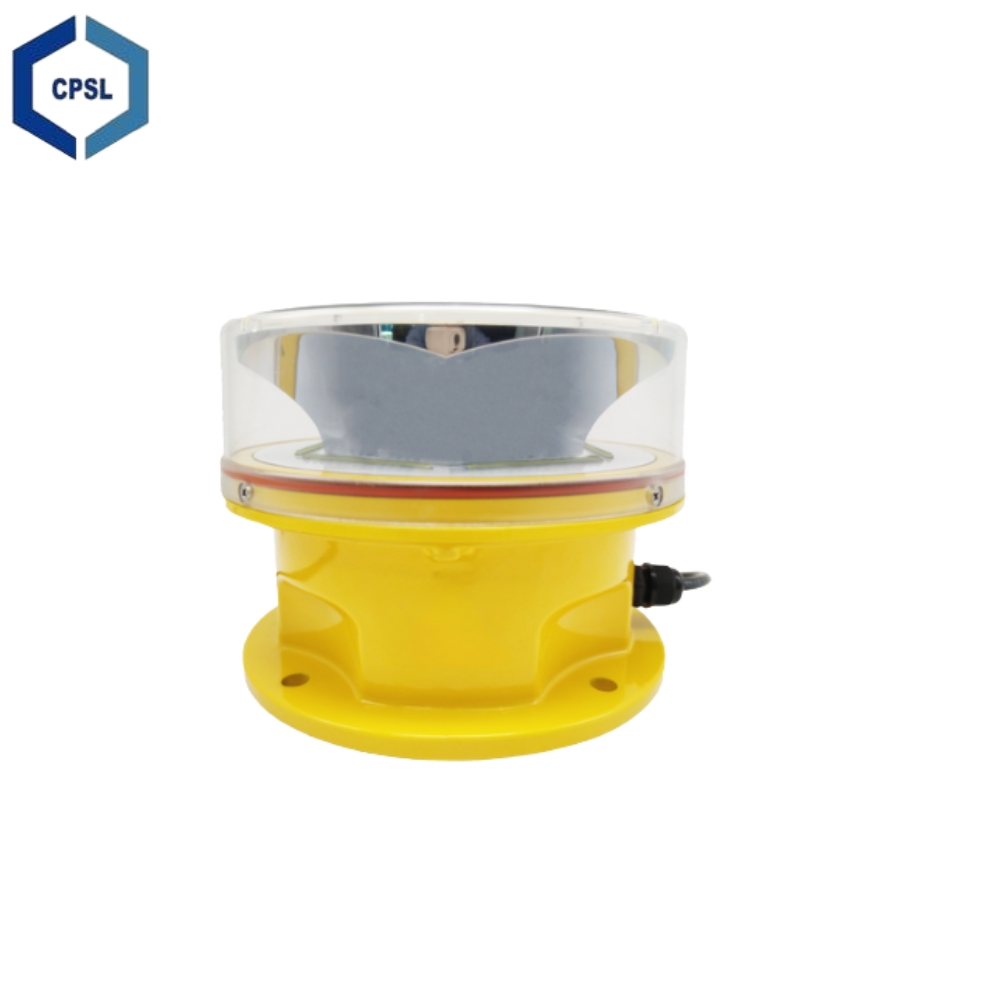

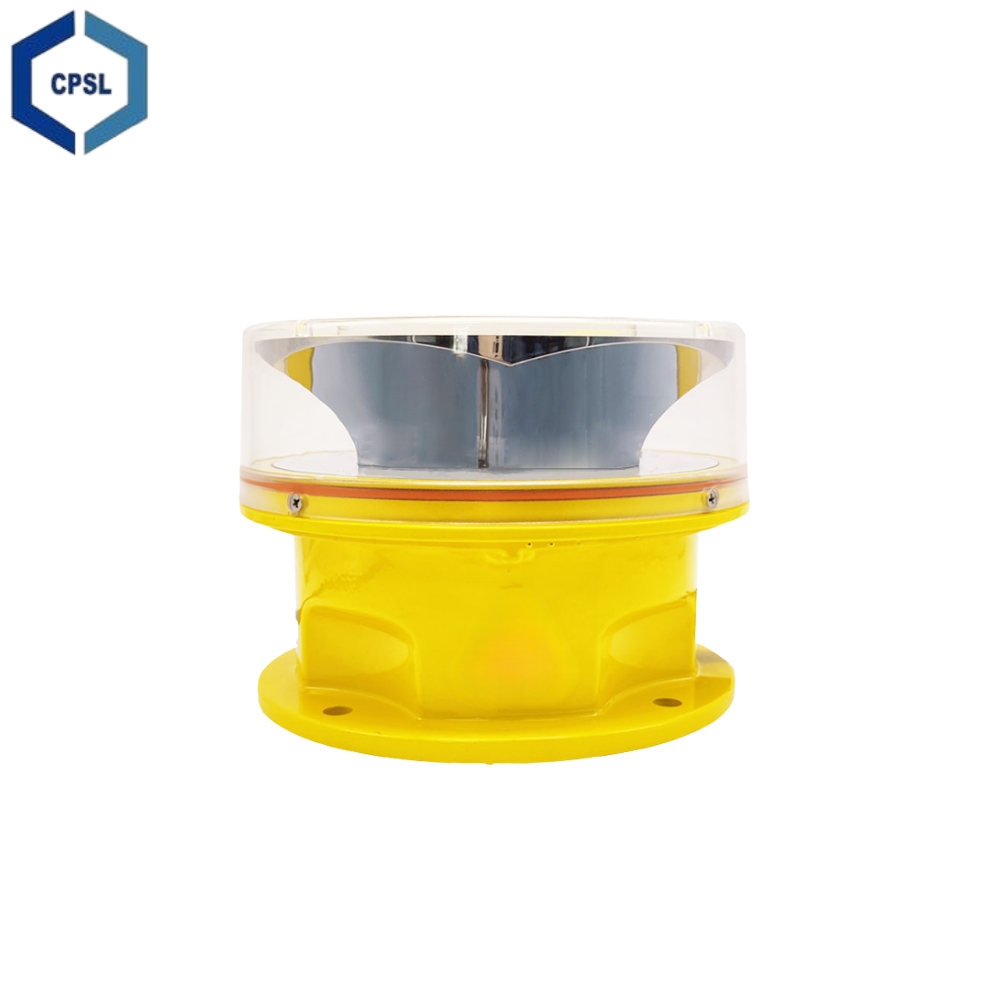

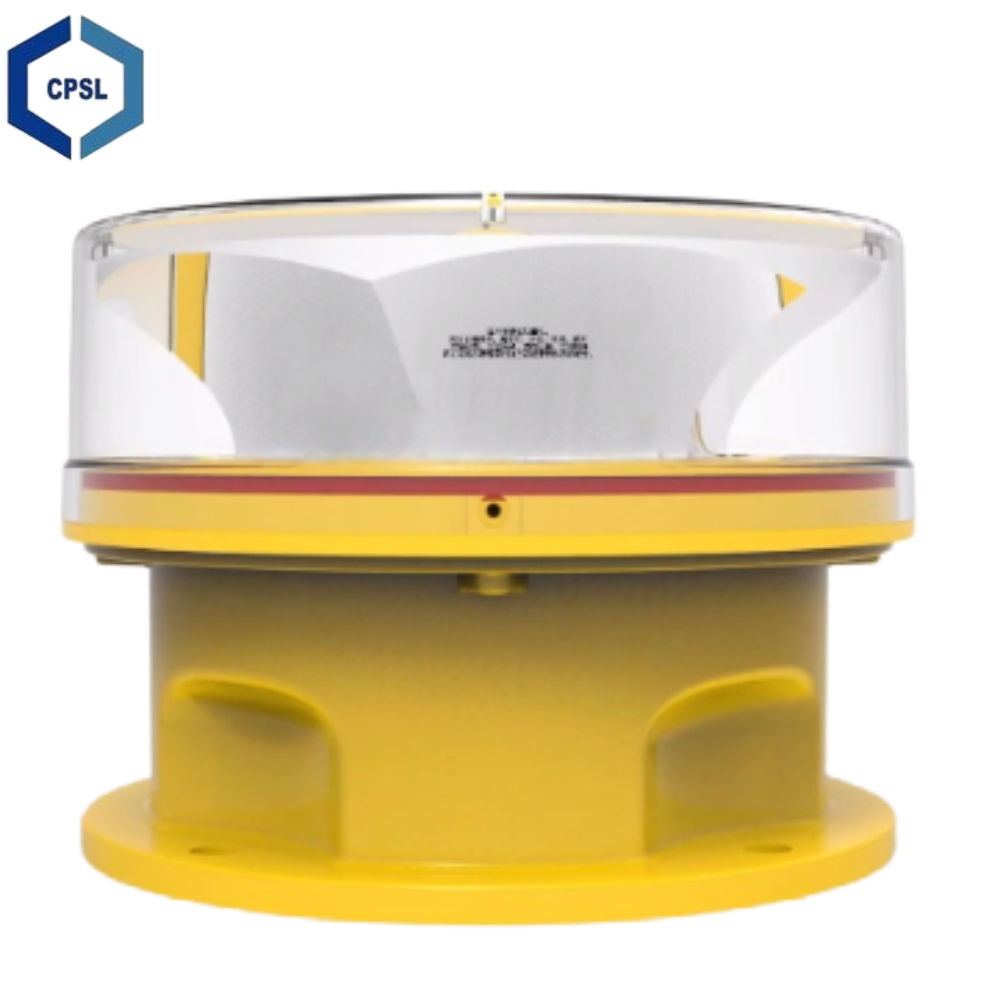

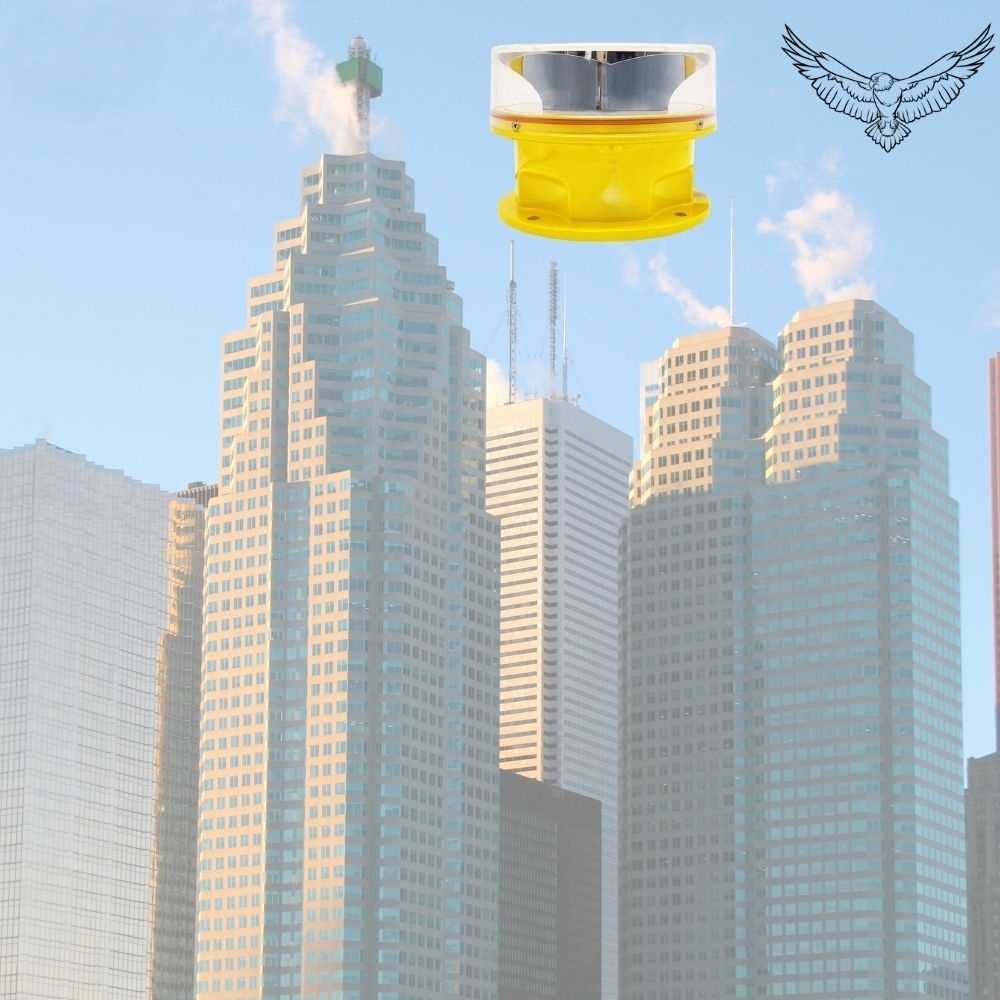

KAZAKHSTAN IP66 DC12V-48V 110-240V AC Red White Flashing Medium Intensity LED Aircraft Warning Aviation Obstruction Light for Tower High Building

Feature:

This LED Medium-intensity Type B L864 Aviation Obstruction Light flashing red color, designed for marking top of obstacle which height is more than 45meters. Ultra high intensity CREE LED is used for the light source ensure the long life experience and good performance. Self-designed reflector is used to converge light, which could reach the standard light intensity with as less as the power consumption.

1.High-intensity LED technology for bright illumination and long-distance visibility.
2.Available in various colors (such as red, white, or a combination) based on application and regulatory requirements.
3.Advanced light control systems, including photocells or timers, for automatic activation during low visibility or nighttime conditions.
4.Durable and weather-resistant construction to withstand harsh environmental conditions.
5.Self-diagnostic features to detect and report operational issues for reliable functioning.
6.Essential for alerting pilots and aircraft personnel to the presence of tall structures or obstacles.
7.Enhance aviation safety by minimizing the risk of collisions and ensuring air navigation safety. Vital component of aviation infrastructure worldwide.

• Electrical
  1.CR-EE ultra high intensity LED as light source saving power consumption and maintenance than incandescent light or halogen lamp
  2.Power supply available in DC(12V, 24V, 48V) or AC(110-240VAC)
  Physical

  1.Unique design and UV protected polycarbonate reflector for converging light
  2.UV protection Powder coated bright yellow color base make better visibility
  3.Base material is die casting aluminum which has strong corrosion resistance, Shock and Vibrations protection

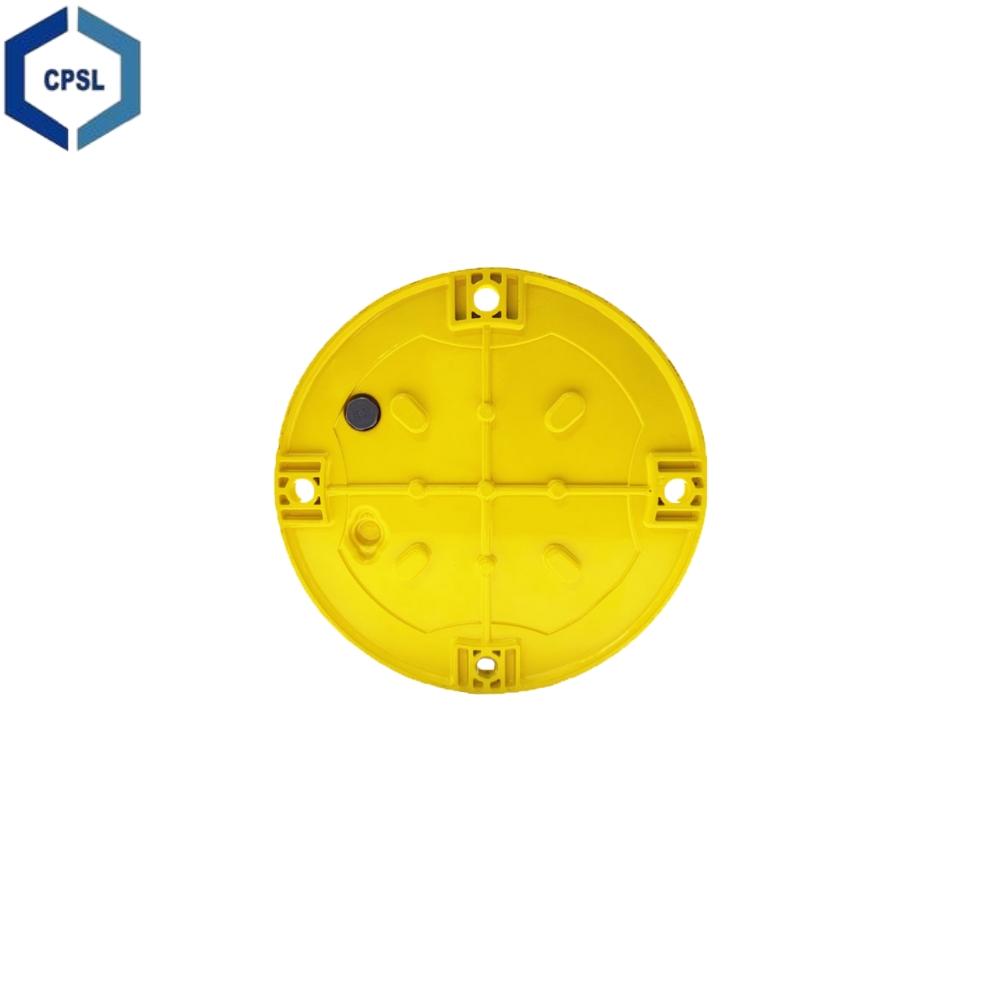

  4.Pressure equalizing valve installed under the base to make sure the air could go through but water is avoid, so that the whole light temperature won’t be high to avoid the moist air enter due to pressure and temperature difference

  System design

  1.Built-in photocell for day/night operation(dusk to dawn operation)
  2.Surge and lightning protection
  Optional

  1.Dry contact Alarm output for remote monitoring
  2.GPS synchronization
  3.User adjustable flashing rate(20, 30, 40, 60 flashes/minute)

• Light Source: CREE high intensity LED
• Available Colors: White
• Intensity(cd): ≥20,000cd (Daytime)/≥2,000cd(Night)
• Horizontal Output(degrees): 360
• Vertical Divergence(degrees): 3
• Flash Characteristics: 20-60 flashes per minute(factory setting: 20fpm)
• Operation Mode: Dusk-to-dawn Automatically as standard.
• LED Life Experience(hours): >100,000



Application:

• Communication towers, skyscrapers, chimneys, bridges
• Wind turbines & wind farms
• Airport control towers, hangars, runway-related buildings and equipment
• Power transmission towers and lines
• Helipads, heliports
• Construction cranes, unfinished high-rise buildings and temporary site obstacles
• Offshore oil rigs, offshore wind farms and offshore facilities
• Radio and TV broadcast towers
• Mountain and hill terrains
• Other high-risk tall obstacles endangering aviation safety
